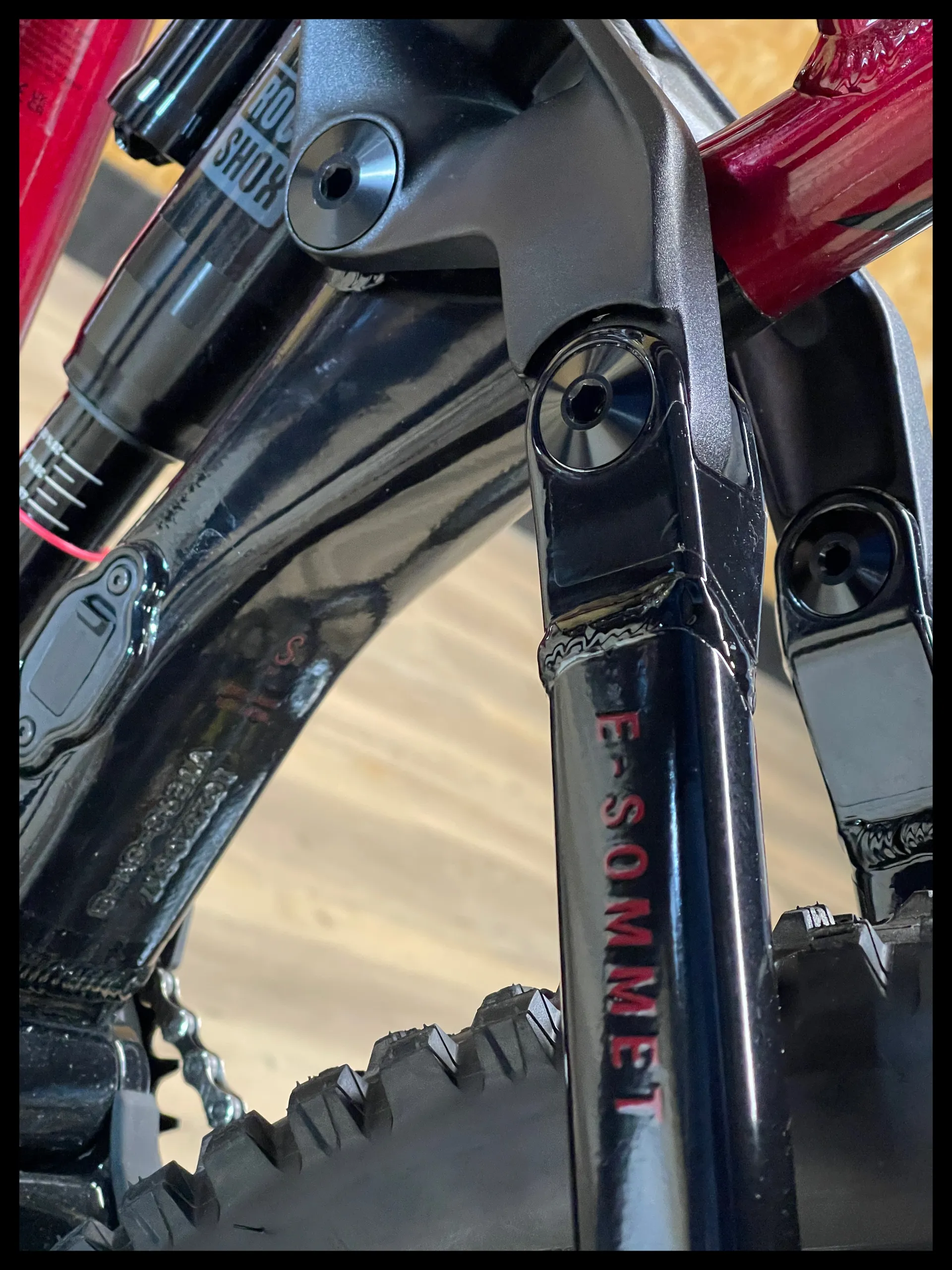

FRAME E-Sommet 6061-T6 Double Butted Alloy
Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Shimano STEPS compatible. Axle Specifications: 180mm Length, 13mm Thread Length, M12xP1.0 Thread Pitch
REAR RIM WTB ST Light i30 TCS 2.0
27.5", 32H, Presta Valve, Tubeless Ready Rim Tape Installed

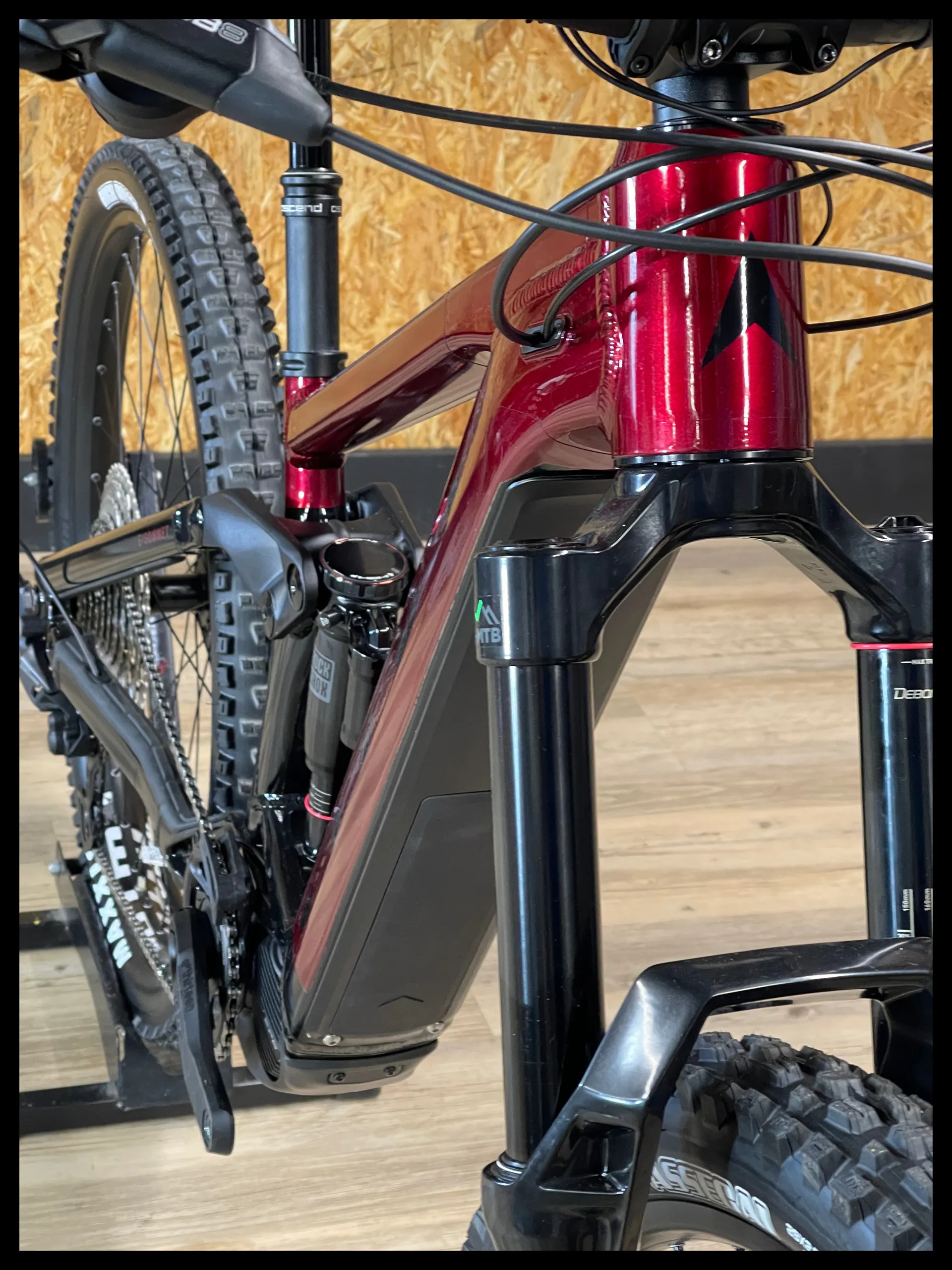

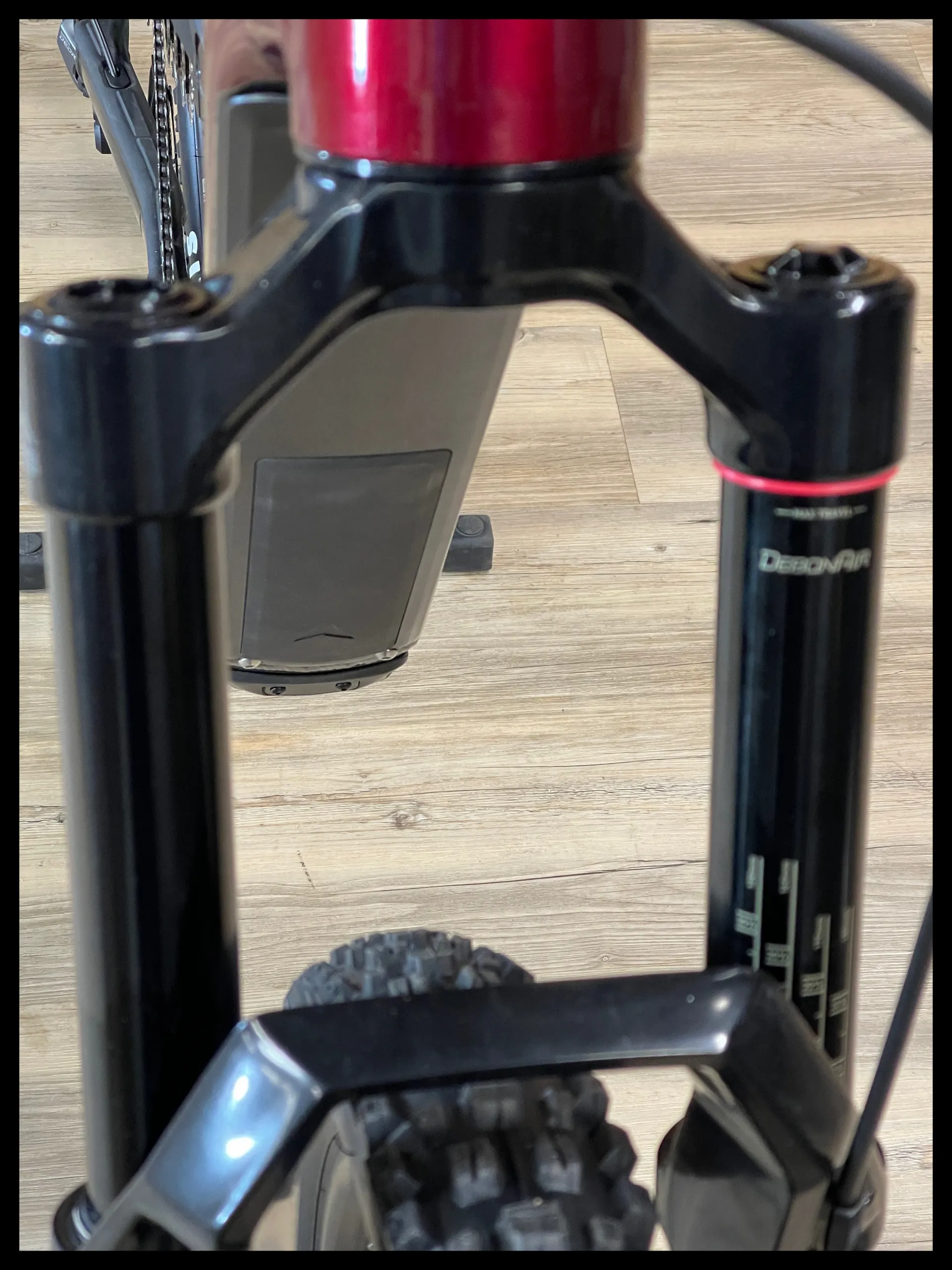

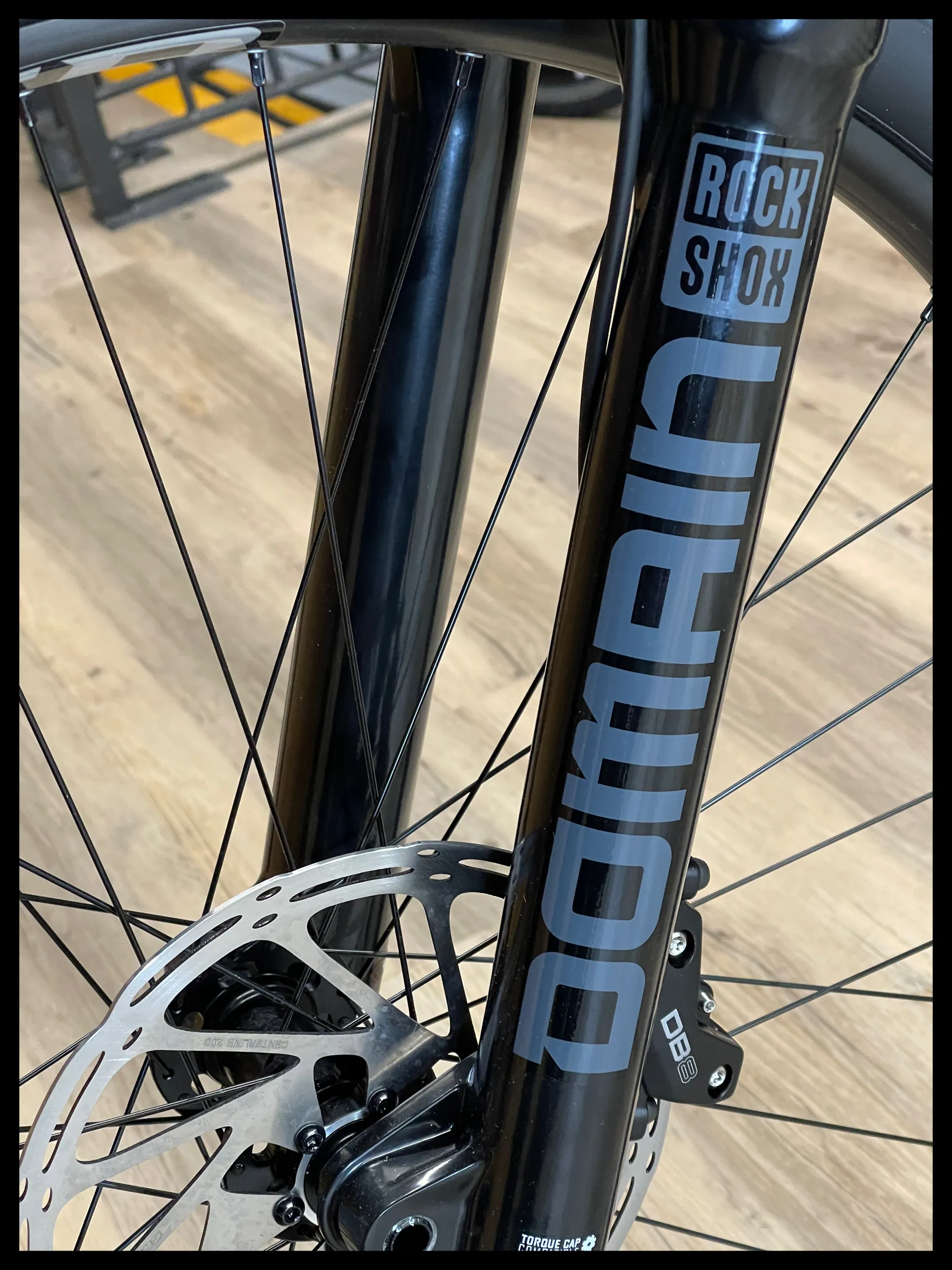

FORKS RockShox Domain R 29"
170mm travel, DebonAir, 38mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset
FRONT HUB Vitus KT DHF11232H, 6 Bolt Disc Fitment, 110mm x 15mm

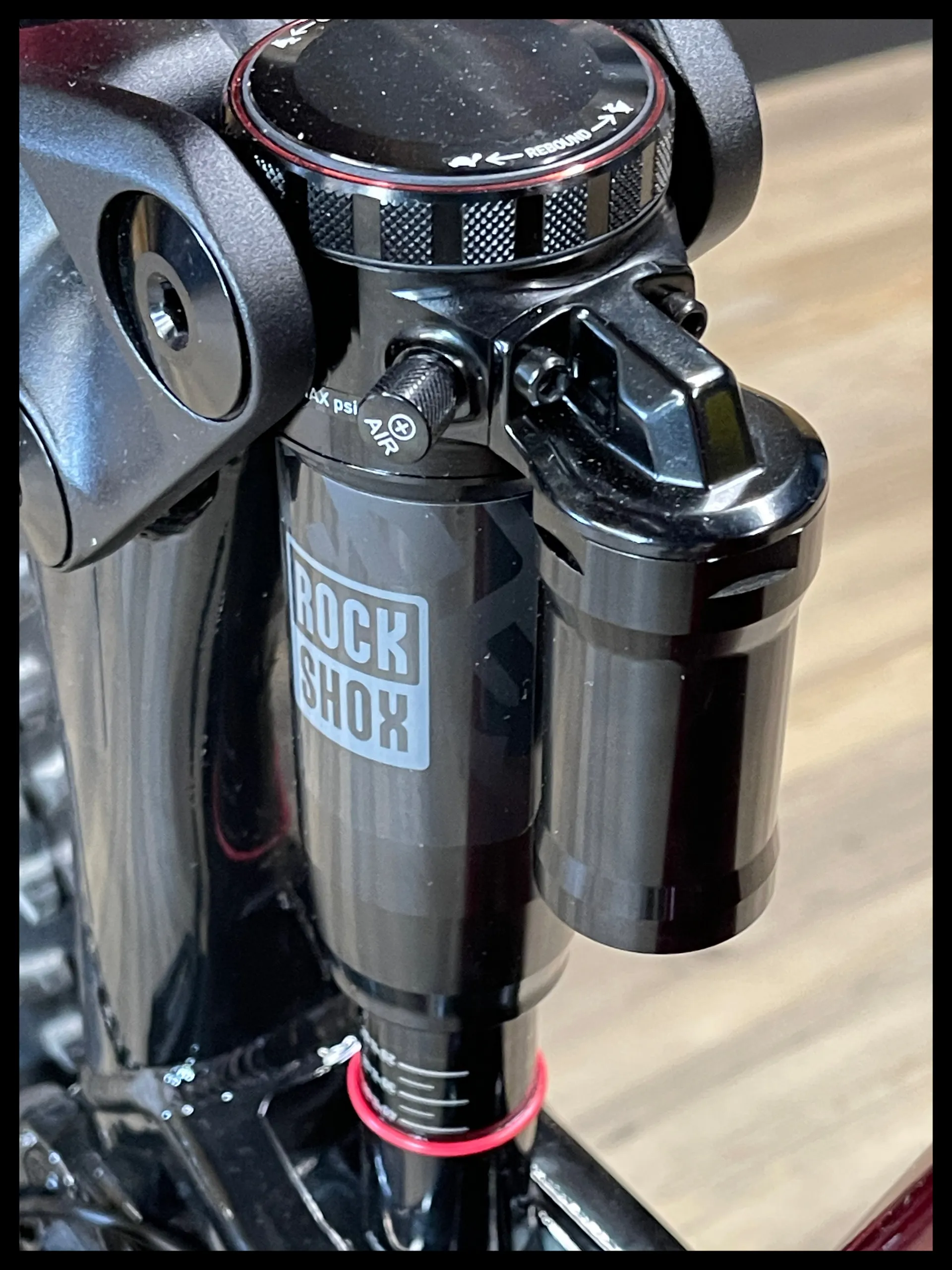

SHOCK RockShox Super Deluxe Select R
DebonAir, 205mm x 65mm, trunnion
REAR HUB Vitus KT H5ER-SH
32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm

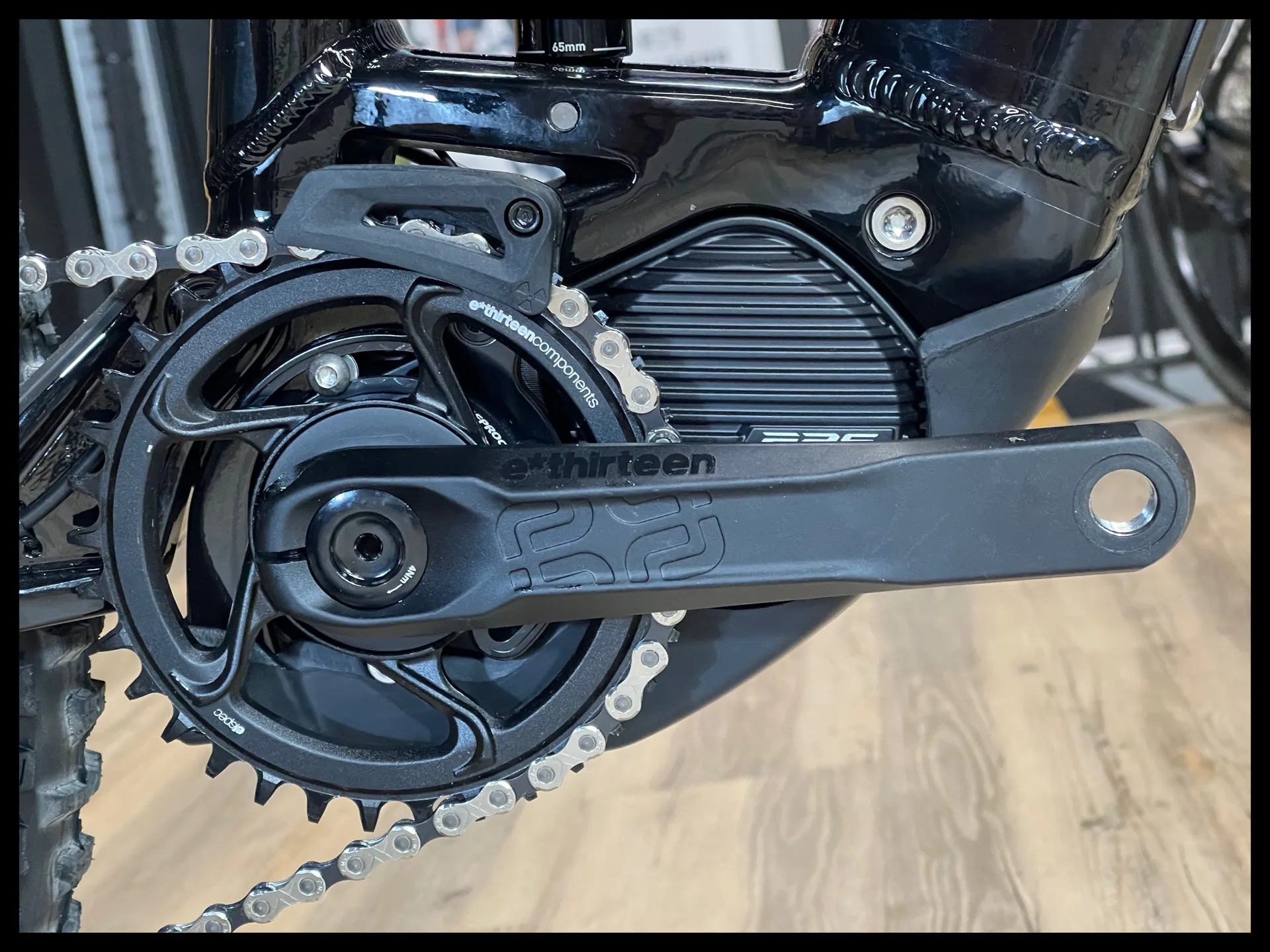

CHAINSET E*Thirteen E*Spec Plus
34T Narrow Wide Chainring, 165mm Crank Length, 53mm Chain Line
WHEELSET WTB ST Light i30 rims on Vitus KT hubs
29" Front, 27.5" Rear Wheelset, 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, Tubeless Ready
BOTTOM BRACKET N/A
N/A
FRONT TYRE Maxxis Assegai
29" x 2.5" WT, 3C MaxxGrip compound, DD casing
FRONT DERAILLEUR N/A
N/A

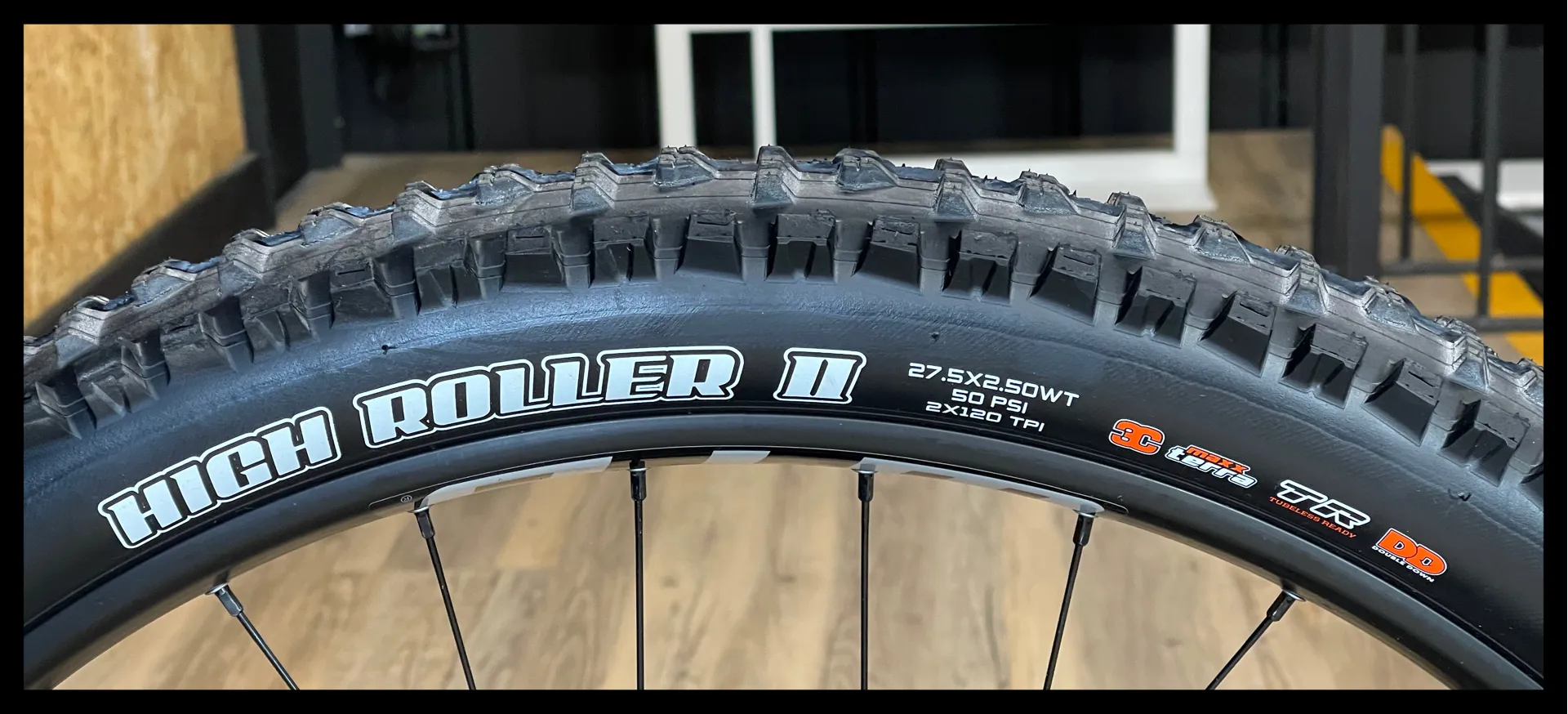

REAR TYRE Maxxis High Roller II
27.5" x 2.5" WT, 3C MaxxTerra compound, DD casing

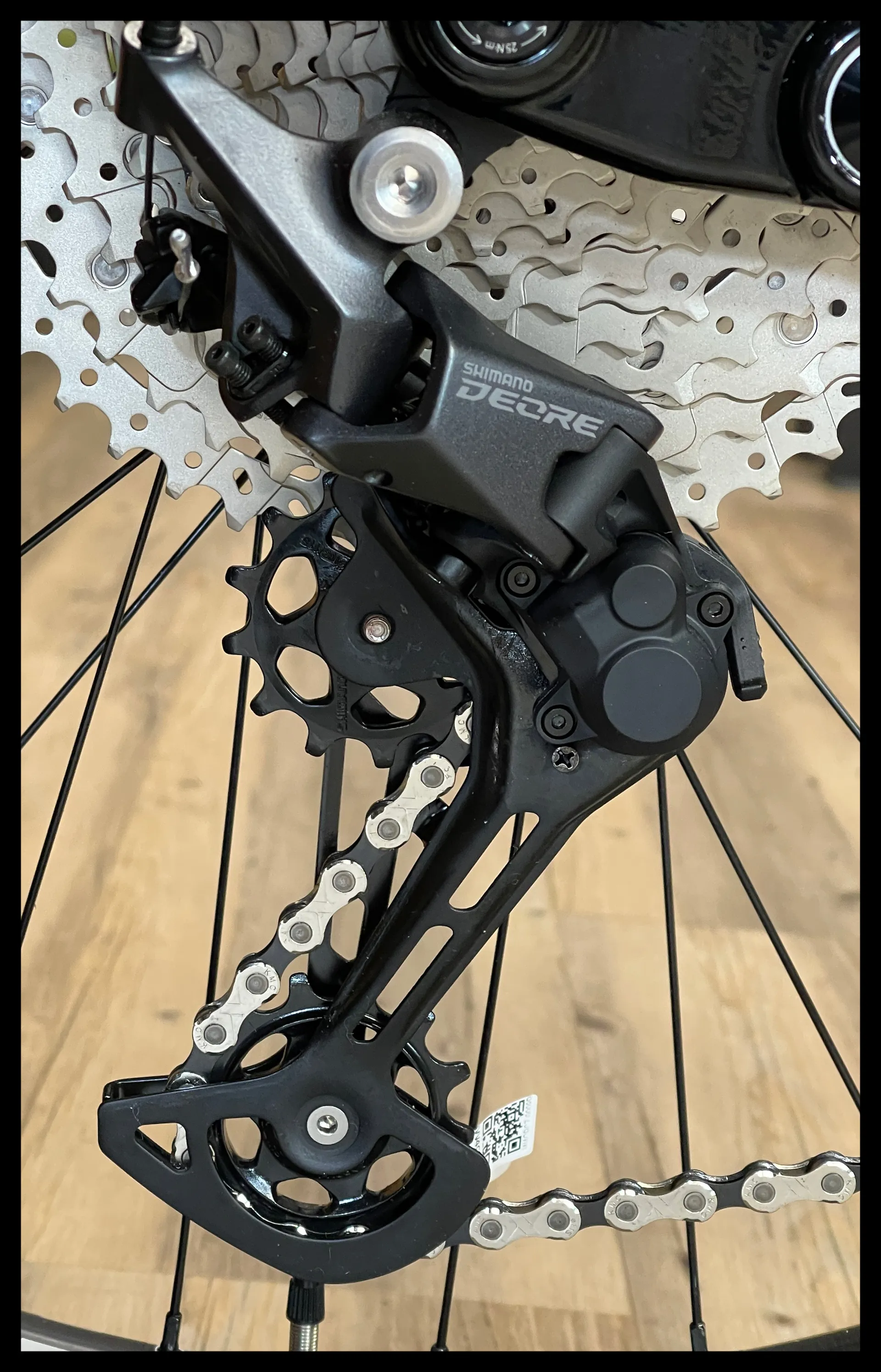

REAR DERAILLEUR Shimano Deore
11 Speed, Long Cage

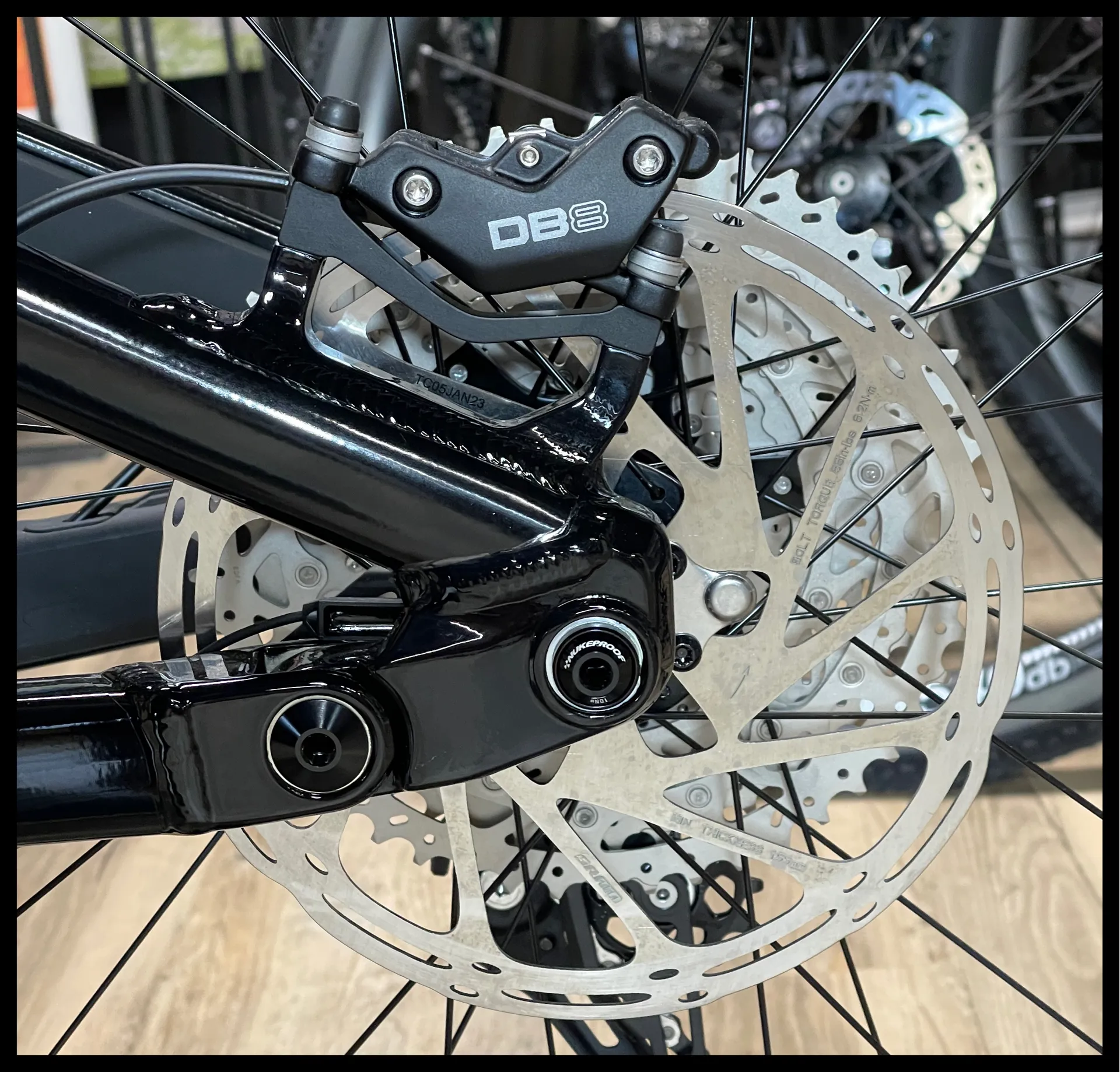

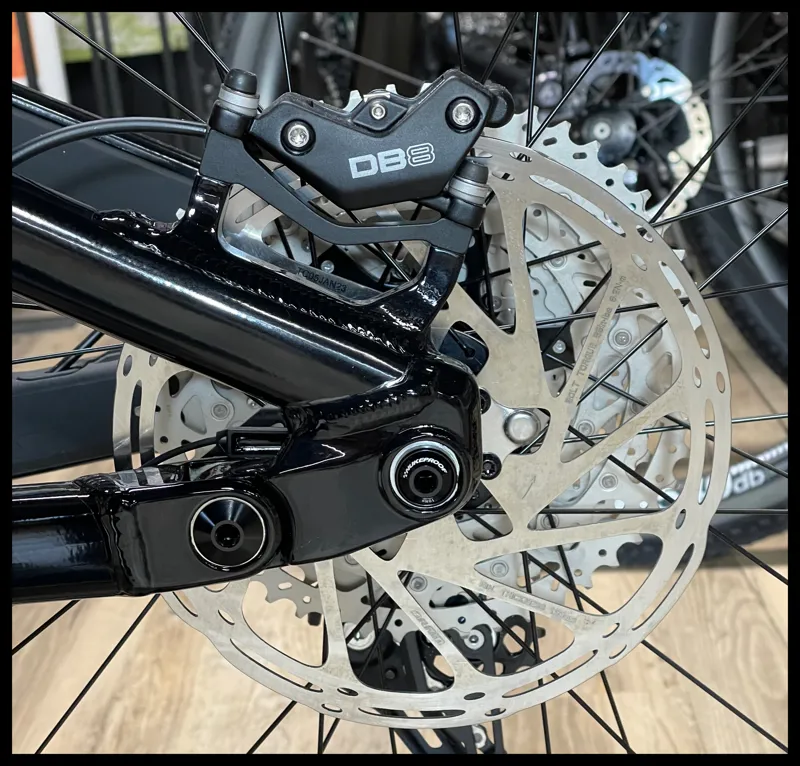

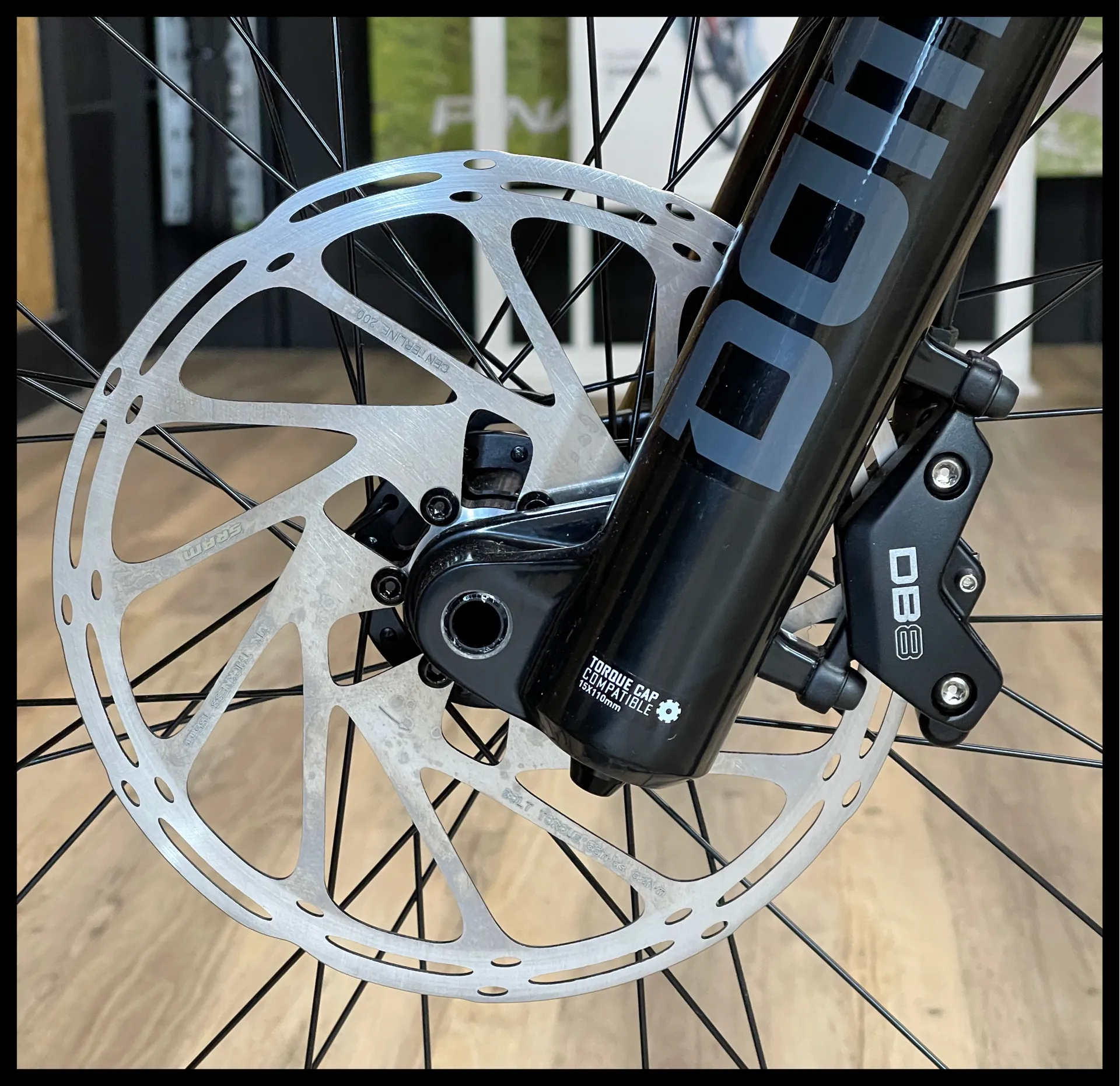

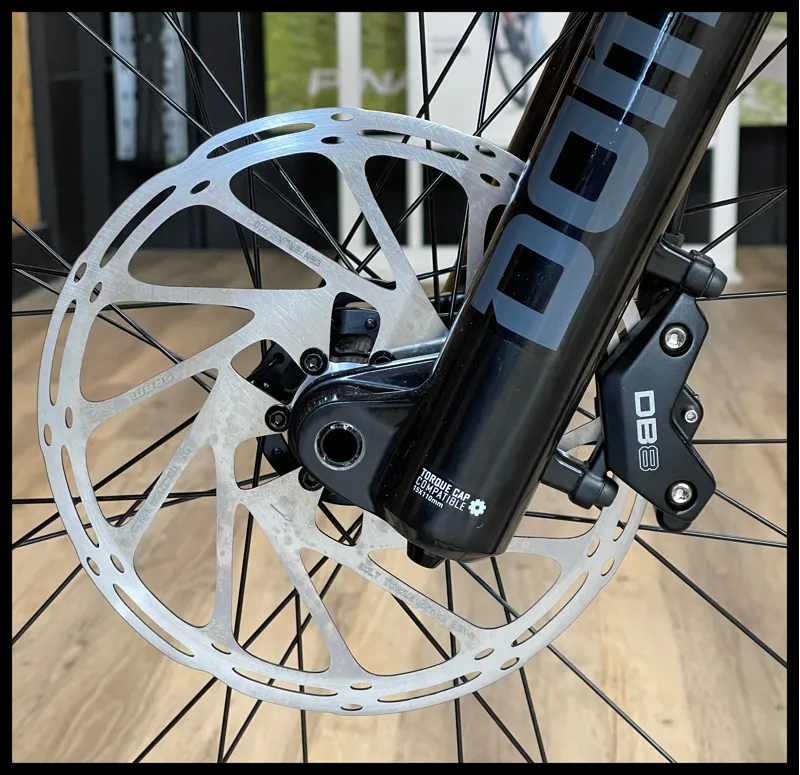

BRAKES SRAM DB8Post Mount, Four Piston Caliper
SHIFTERS Shimano Deore M510011 Speed, Rapidfire Plus
BRAKE ROTORS SRAM CenterLine200mm Front & Rear, 6 Bolt Hub Fitment

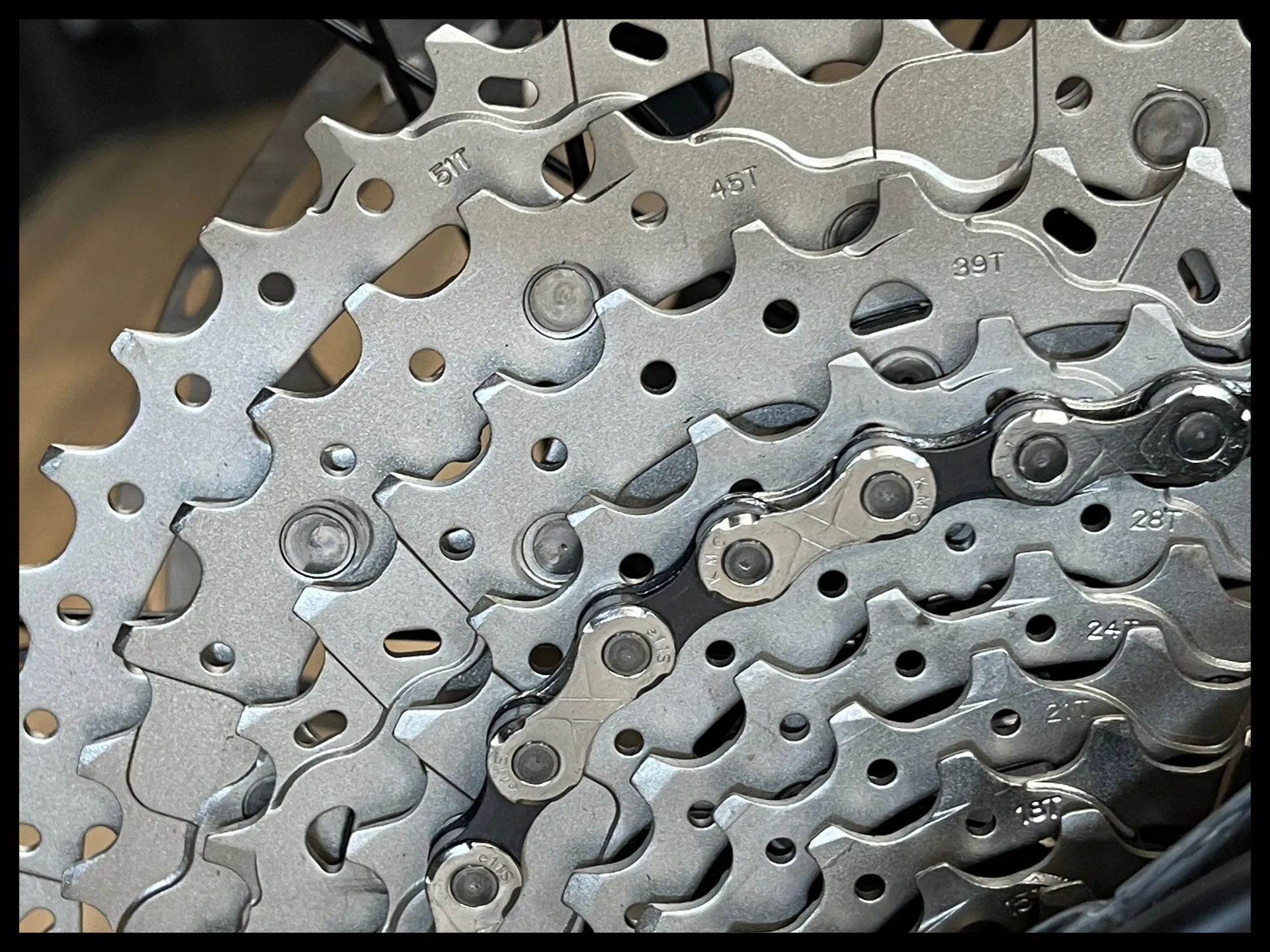

CASSETTE Sunrace CSMS7
11 Speed, 11-51T Range
HANDLEBARS Nukeproof Horizon V2 Riser7075 Alloy, 9° Back Sweep, 31.8mm Clamp Diameter, S & M: 780mm Wide, 12mm Rise, L & XL: 800mm Wide, 25mm Rise
CHAIN11 Speed, E-Bike specific, 118 Links
STEM Nukeproof Neutron AM6061 Alloy, 45mm length, 31.8mm Handlebar Clamp Diameter, 0° Rise
MOTOR BATTERY ShimanoBT-EN806-A630Wh, Downtube Integrated
HEADSET NukeproofZS56/28.6 upper & ZS66/46 lower to suit 1-1/8" upper tapered to 1.8" lower headtube
MOTOR COMPUTER Shimano EM800Boost, Trail, Eco, Off & Walk modes
GRIPS Vitus Lock OnN/A
MOTOR SHIFTER Shimano EM800Mounted on left
SADDLE Nukeproof Trail SaddleBlack, Steel Rails
MOTOR DRIVE UNIT Shimano EP600Max Power Output 250W, Max Torque 85Nm

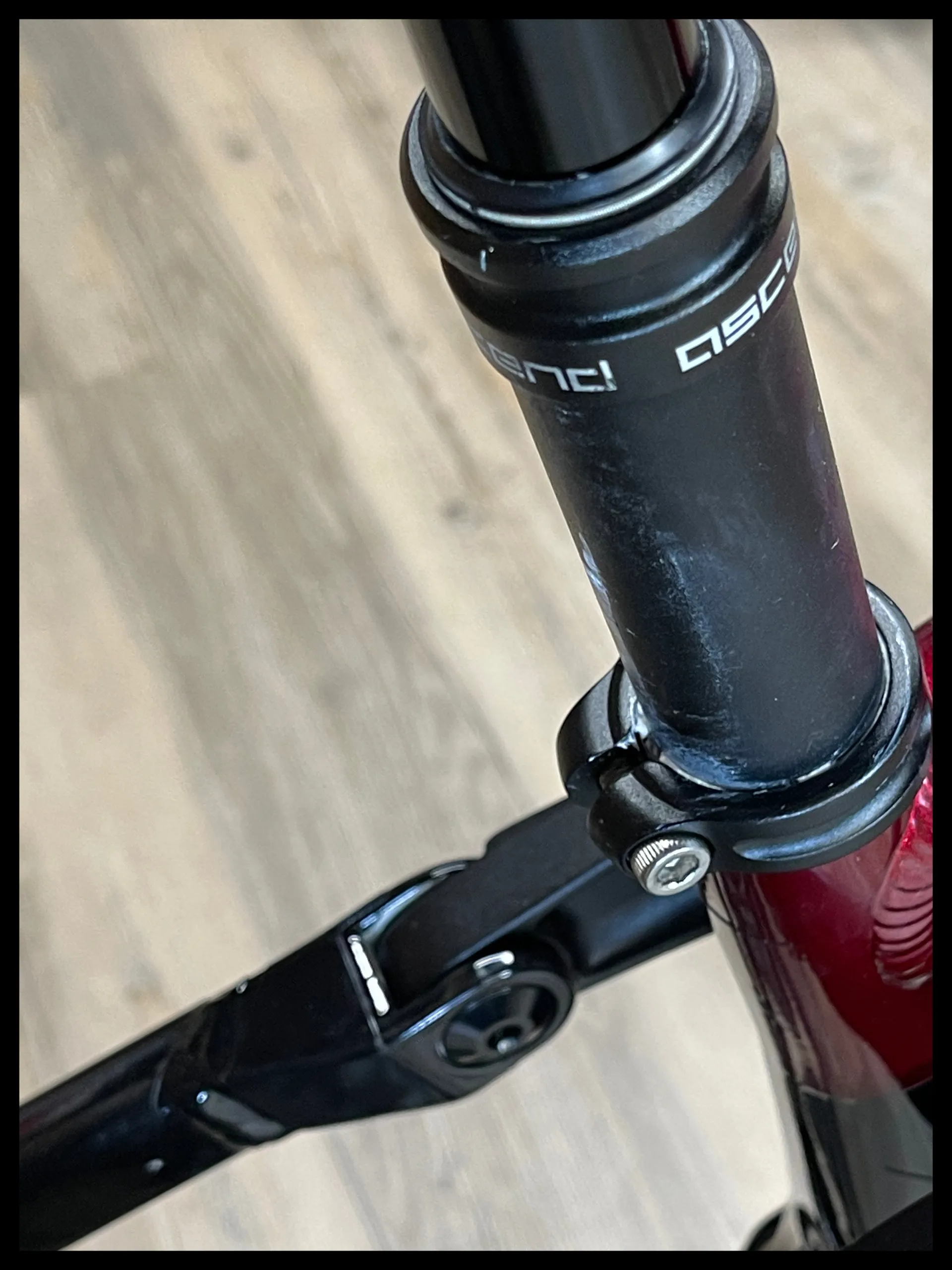

SEATPOST Brand-X Ascend DropperRemote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
FRONT RIM WTB ST Light i30 TCS 2.029", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
SEATCLAMP Vitus34.9mm Diameter
